PV Junction Box

Model No. : BKTPVJB203SL

  • Protected IEC 60068-2-52
  • Dust & water-proof IP65(without potting), IP68(1m/1h)(potting)
  • UV, Ammonia, safety class II
  • Safety requirement and test as per IEC 62790:2020, EN IEC 62790:2020
  • Ribbon termination is achieved by soldering
  • Customer-specific: connector, diode, cable length



Download Data Sheet

Technical Data for Split PV Junction Box

Model BKT-PV-JB203SL
Product Description 2 Rail Junction Box
Rated Current 6Amp to 10Amp
Rated Voltage 1000VDC
Temperature Range -40°C to +85°C
Safety Class Class II
Protection Degree IP 65
Wire Size Range 0.5mm² to 2.5mm²
Flame Resistance 5VA
Contact Resistance ≤5mΩ
Waterproofing Structure Seal with Gromet
Diode Connection Method Soldering
Bus Bar Connection Method Soldering
Insulation Material PPO/PC
Contact Material Copper alloy ETP 99.98% Purity, Tin plated

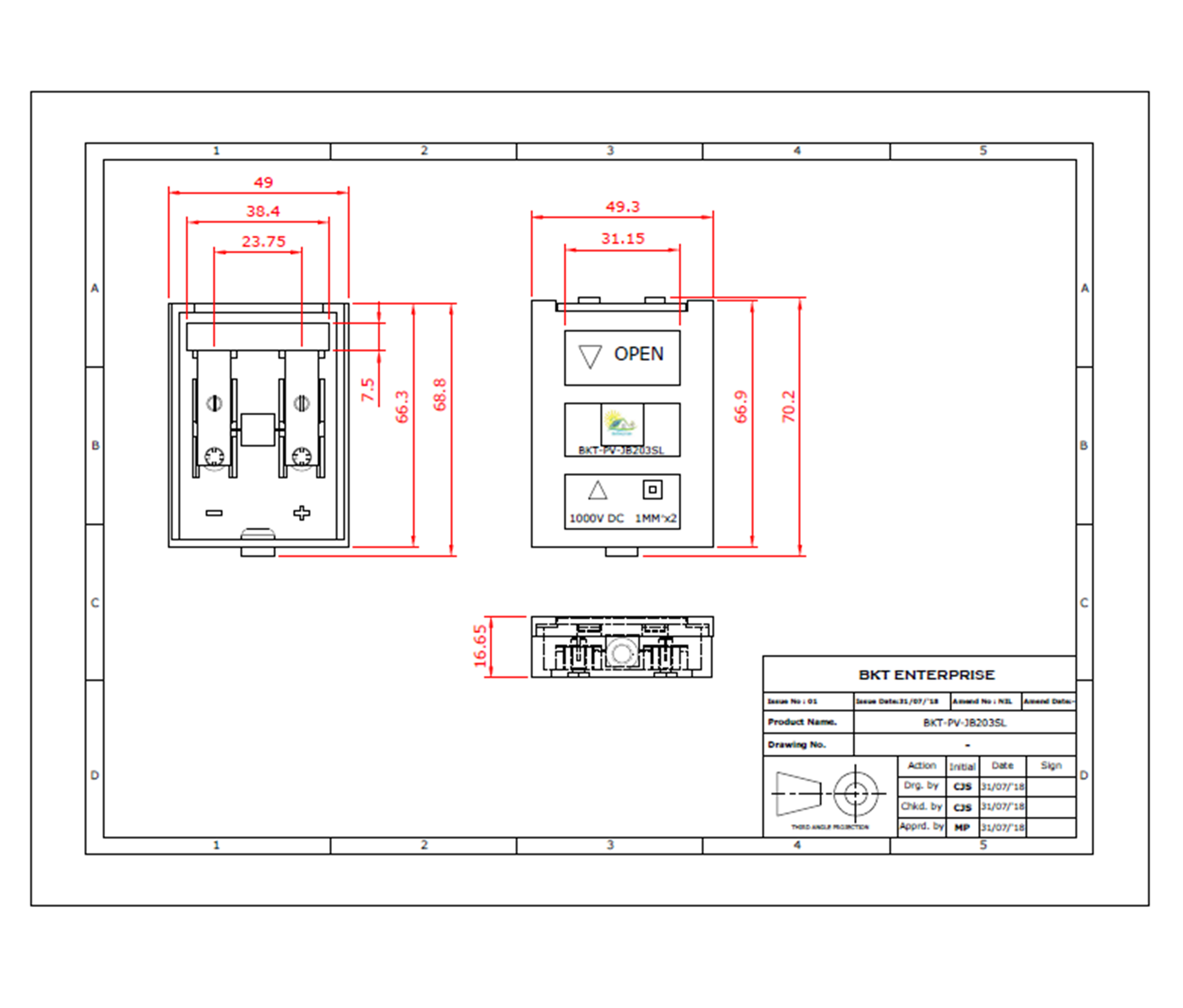

Overall Dimension 49mm x 66.3mm x 16mm
Optional Connector NA
Diode Type 6A10,10A10
