PV Junction Box

Model No. : BKT-PV-JB4

  • Protected IEC 60068-2-52
  • Dust & water-proof IP65(without potting), IP68(1m/1h)(potting)
  • UV, Ammonia, safety class II
  • Safety requirement and test as per IEC 62790:2020, EN IEC 62790:2020
  • Ribbon termination is achieved by soldering
  • Customer-specific: connector, diode, cable length



Download Data Sheet

Technical Data for Split PV Junction Box

Model BKT-PV-JB4
Product Description 4 Rail Junction Box
Rated Current 10 Amp to 25Amp
Rated Voltage 1500VDC
Temperature Range -40°C to +85°C
Safety Class Class II
Protection Degree IP 68
Wire Size Range 4mm² to 6mm²
Flame Resistance 5VA
Contact Resistance ≤5mΩ
Waterproofing Structure Seal with O Ring
Diode Connection Method Soldering
Bus Bar Connection Method Soldering
Insulation Material PPO/PC
Contact Material Copper alloy ETP 99.98% Purity, Tin plated

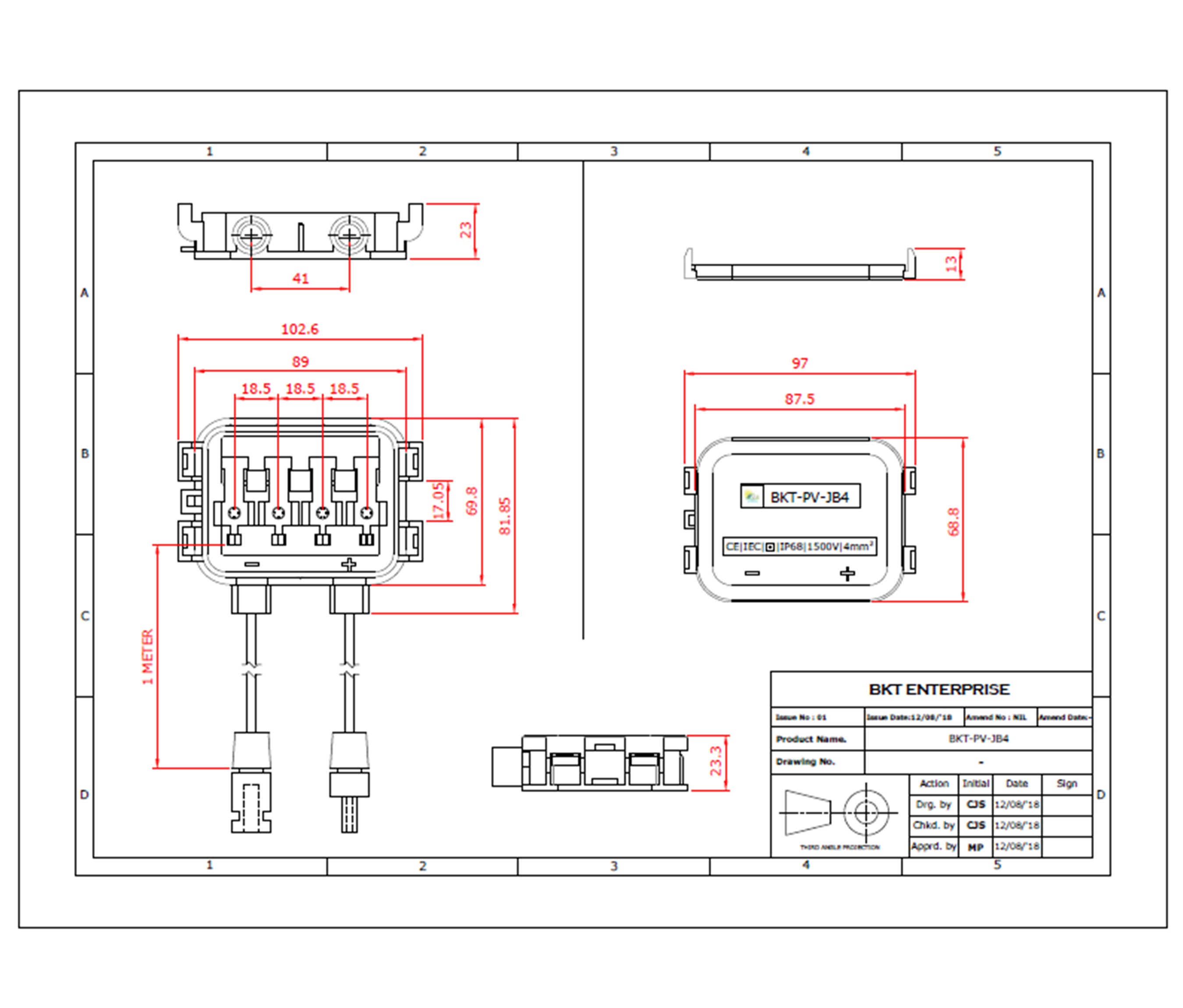

Overall Dimension 92.5 x 101.6 x 19.7 mm
Connector MC4 Connector With Cable 4mm² (Male & Female)
Diode Type 15SQ045, 20SQ045, SS2045, SS2545CT
