Model No. : BKTPVJB3M
Model | BKT-PV-JB3M |
Product Description | 3 Rail Junction Box |
Rated Current | 6A to 15A |
Rated Voltage | 1000VDC |
Temperature Range | -40°C to +85°C |
Safety Class | Class II |
Protection Degree | IP 68 |
Wire Size Range | 2.5mm² to 4mm² |
Flame Resistance | 5VA |
Contact Resistance | ≤5mΩ |
Waterproofing Structure | Seal with O Ring |
Diode Connection Method | Soldering |
Bus Bar Connection Method | Soldering |
Insulation Material | PPO/PC |
Contact Material | Copper alloy ETP 99.98% Purity, Tin plated |

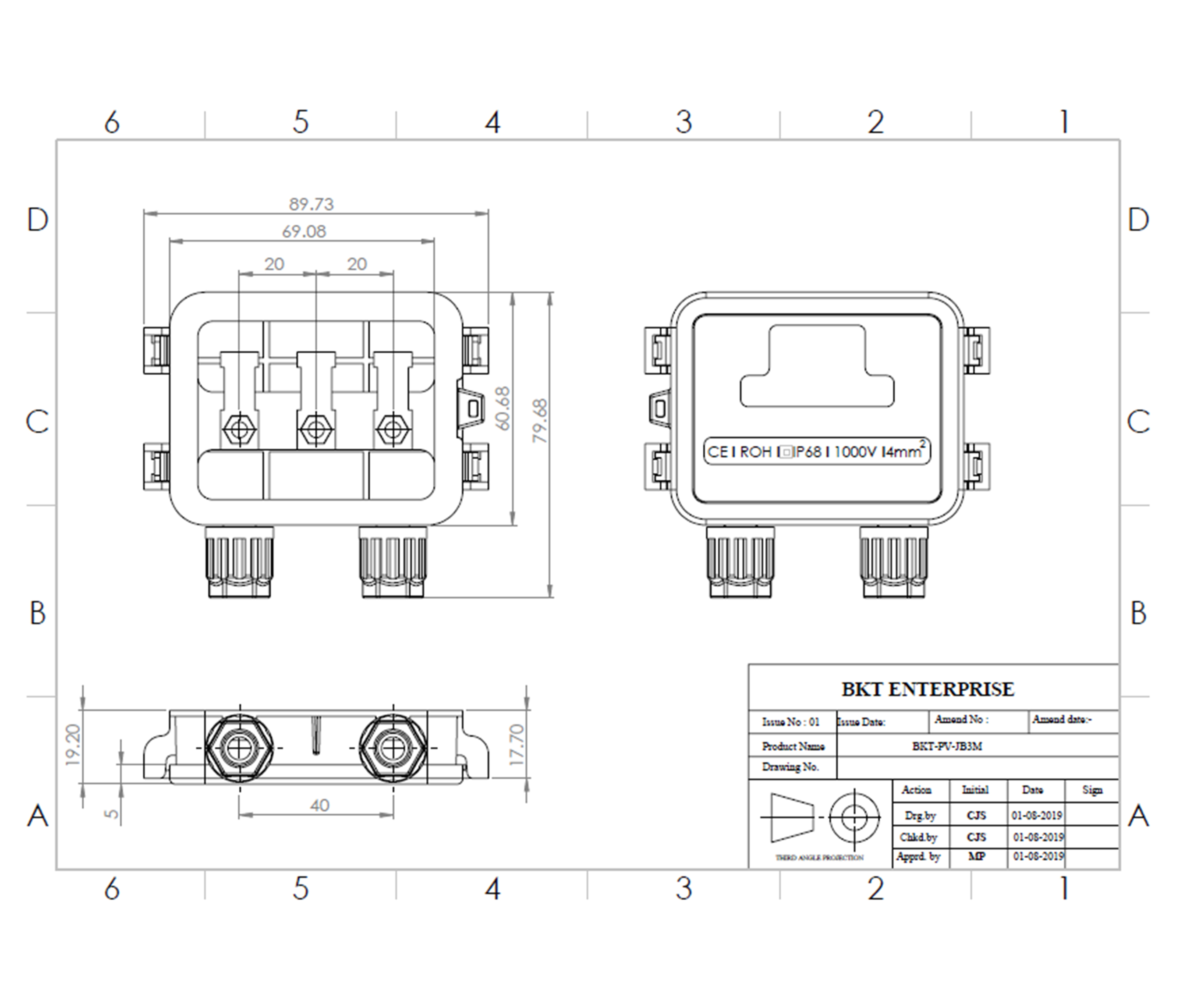

Overall Dimension | 79.6 x 89.5 x 19 mm |
Connector | MC4 Connector With Cable 4mm² (Male & Female) |
Diode Type | 6A10, 10A10, 10SQ50, 12SQ045, 15SQ045 |
